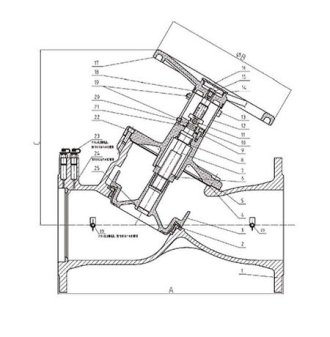

| Part | Specification | |
| 1 | Body | Ductile Iron ASTM A 536 65-45-12 |
| 2 | Body Seat | Bronze BS EN 1982 CC491K |
| 3 | Disc | HT250+EPDM C.L.BS 1561(GJL-250)+EPDM |
| 4 | Gasket | ASBESTOS FREE |
| 5 | Bonnet | ASTM A 536 65-45-12 |
| 6 | Wedge Nut | Bronze BS EN 1982 CC491K |
| 7 | Stem | STAINLESS STEEL SS304 |
| 8 | Stem Retainer | Bronze BS EN 1982 CC491K |
| 9 | Gland | STAINLESS STEEL SS410 |
| 10 | Gland Sock Head Cap Screw | MILD STEEL CS ASTM A307 |
| 11 | Indicator finger | Brass H62 |
| 12 | Indicator set | STAINLESS STEEL SS410 |
| 13 | Memory stop | STAINLESS STEEL SS410 |
| 14 | Washer | MILD STEEL |
| 15 | Head Cap Screw | MILD STEEL CS ASTM A307 |
| 16 | Cap | ABS |
| 17 | Handwheel | Ductile Iron ASTM A 536 65-45-12 |
| 18 | Indicator ring | ABS |
| 19 | Sock head screws | STAINLESS STEEL SS410 |
| 20 | O-Ring | EPDM |
| 21 | O-Ring | EPDM |
| 22 | Bonnet Sock Head Cap Screws | MILD STEEL CS ASTM A307 |
| 23 | P84 Extension Tube | Bronze BS EN 1982 CC491K |
| 24 | Opifice plate | Bronze BS EN 1982 CC491K |
| 25 | Plug | M.I. |
| Size | A | B | C |
| DN | MM | MM | MM |
| 65 | 290 | 200 | 299 |
| 80 | 310 | 200 | 306 |
| 100 | 350 | 240 | 332 |
| 125 | 400 | 290 | 361 |
| 150 | 480 | 290 | 371 |
| 200 | 600 | 350 | 542 |
| 250 | 730 | 420 | 583 |
| 300 | 850 | 420 | 685 |
